Calculate silica group index and dispersion in Python#

Compare phase index with group index and calculate the group-delay dispersion (GDD) through 1 mm of fused silica. The plots below show why the index used for phase propagation differs from the index used for pulse arrival time.

Run the notebook with Runtime → Run all, or download the notebook or Python script to run locally.

Run locally#

python -m pip install PyOptik
python silica_dispersion.py

The script downloads the RefractiveIndex.INFO snapshot on first use. This needs internet access; subsequent runs reuse the local cache.

Calculate and plot#

import matplotlib.pyplot as plt
import numpy as np
from TypedUnit import ureg
from PyOptik import material

# First run downloads the material snapshot; subsequent runs reuse it.
silica = material("fused silica")  # Documented default: main/SiO2/Malitson
wavelengths = np.linspace(500, 1600, 300) * ureg.nanometer
length = 1 * ureg.millimeter

phase_index = silica.n(wavelengths, out_of_range="raise")
group_index = silica.compute_group_index(wavelengths)
gdd = silica.compute_group_delay_dispersion(wavelengths, length=length)

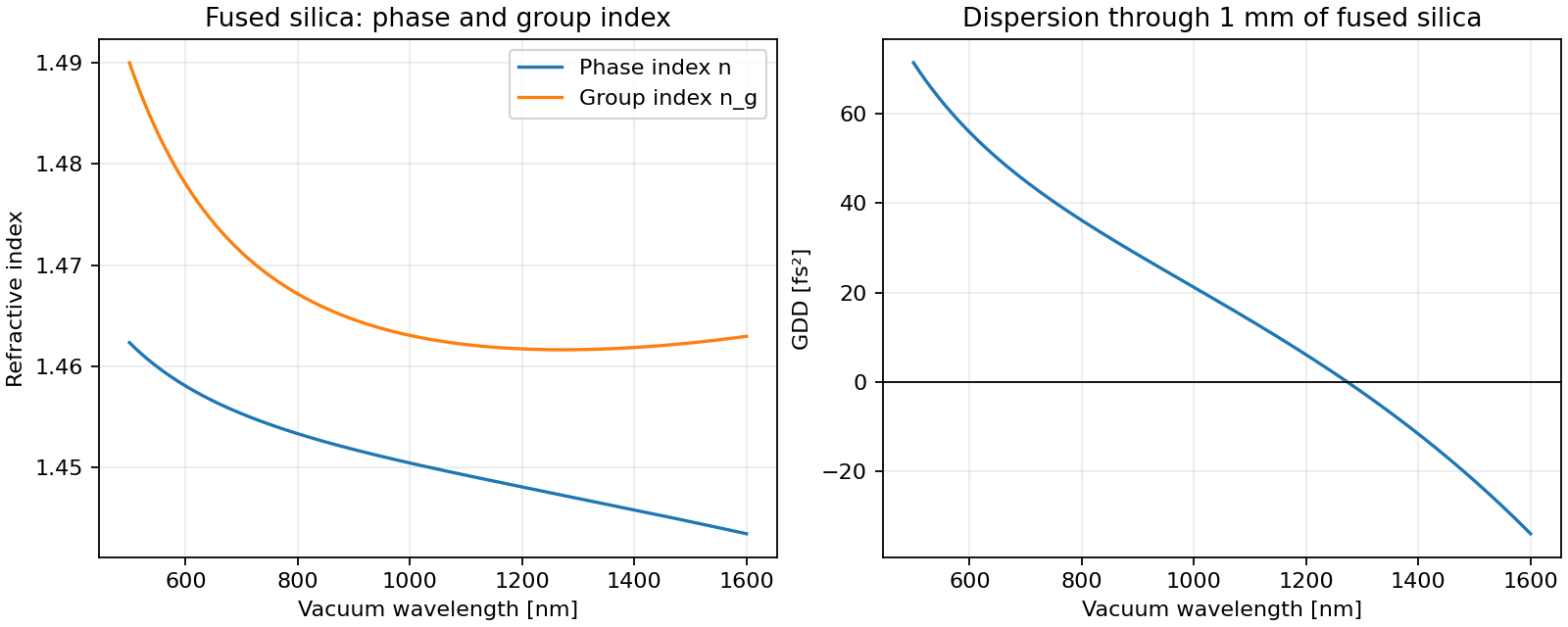

figure, axes = plt.subplots(1, 2, figsize=(10, 4), layout="constrained")
axes[0].plot(wavelengths.magnitude, phase_index, label="Phase index n")
axes[0].plot(wavelengths.magnitude, group_index, label="Group index n_g")
axes[0].set(xlabel="Vacuum wavelength [nm]", ylabel="Refractive index",
            title="Fused silica: phase and group index")
axes[0].legend()
axes[1].plot(wavelengths.magnitude, gdd.to(ureg.femtosecond**2).magnitude)
axes[1].axhline(0, color="black", linewidth=0.8)
axes[1].set(xlabel="Vacuum wavelength [nm]", ylabel="GDD [fs²]",
            title="Dispersion through 1 mm of fused silica")
for axis in axes:
    axis.grid(alpha=0.25)

sample = 800 * ureg.nanometer
print(f"Group index at 800 nm: {silica.compute_group_index(sample):.4f}")
print(f"GDD at 800 nm through 1 mm: "
      f"{silica.compute_group_delay_dispersion(sample, length=length).to(ureg.femtosecond**2):.2f}")
plt.show()

Understand the result#

The group index is \(n_g = n - \lambda\,dn/d\lambda\), and the group velocity is \(c/n_g\). GDD is \(d\tau_g/d\omega\) for a specified propagation length. It describes how group delay changes with angular frequency and is reported here in fs². Doubling the length doubles the GDD; it does not change the group index.

This example uses the Malitson fused-silica Sellmeier model. The 500–1600 nm interval stays within its source validity range and leaves room for the finite differences used to calculate derivatives. GDD is a numerical derivative: check convergence if you need high precision. This describes bulk material dispersion, without waveguide dispersion.

Try another design#

Change length to 10 mm and compare GDD. Then evaluate the group delay at 800 nm with silica.compute_group_delay(800 * ureg.nanometer, length=length).

See Physical and numerical conventions for physical conventions and Materials and catalog for source selection and provenance.
