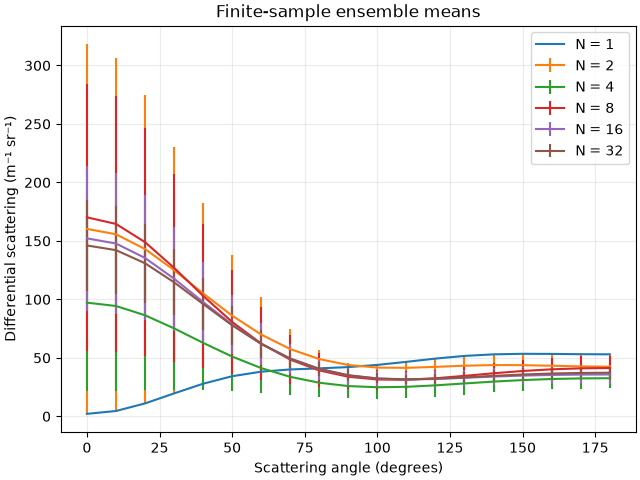

Realization count and sampling uncertainty

Increase the number of independent volumes at a fixed grid, covariance, and Born order. Curves show the estimated mean with one-standard-error bars. One realization has unknown error, represented by NaN. Standard errors measure sampling uncertainty, not voxel, quadrature, or finite-size error.

from bornsim.medium.random_medium import GaussianMedium

import sys

import matplotlib.pyplot as plt
import numpy as np

from bornsim import EnsembleSampling, Grid, AngularSampling, Solver, Source
from bornsim.units import ureg

grid = Grid(
    shape=(6, 6, 6),
    spacing=40 * ureg.nanometer,
)

medium = GaussianMedium(
    correlation_length=80 * ureg.nanometer,
    background_refractive_index=1.33,
    refractive_index_std=0.01,
)

source_configuration_1 = Source(wavelength=633 * ureg.nanometer)

solver = Solver(
    source=source_configuration_1,
    order=1,
)

sampling = AngularSampling(
    start=0 * ureg.degree,
    end=180 * ureg.degree,
    n_points=19,
    polar_samples=16,
    azimuth_samples=4,
)

counts = [1, 2, 4, 8, 16, 32]

means = []

errors = []

figure, axis = plt.subplots(layout="constrained")

for count in counts:
    ensemble_sampling_configuration_1 = EnsembleSampling(
        realizations=count,
        seed=42,
    )

    result = solver.ensemble(
        medium=medium,
        grid=grid,
        ensemble_sampling=ensemble_sampling_configuration_1,
        sampling=sampling,
    )

    averaged = result.azimuth_average()

    values = averaged.differential.to("1 / meter / steradian").magnitude[0]

    stderr = averaged.stderr.to("1 / meter / steradian").magnitude[0]

    axis.errorbar(
        result.angles.to("degree").magnitude, values, yerr=None if count == 1 else stderr, label=f"N = {count}"
    )

    means.append(values[0])

    errors.append(stderr[0])

axis.set(
    xlabel="Scattering angle (degrees)",
    ylabel="Differential scattering (m⁻¹ sr⁻¹)",
    title="Finite-sample ensemble means",
)

axis.legend()

axis.grid(alpha=0.25)

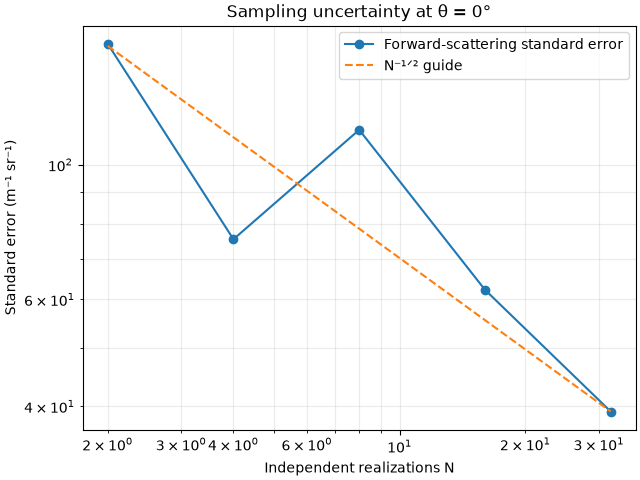

Sampling error at a fixed direction

These are nested ensembles, using the first N consecutive seeds. Their estimates are correlated across N. A realized error need not decrease monotonically; the N**(-1/2) guide describes independent-sample scaling.

figure, axis = plt.subplots(layout="constrained")

axis.loglog(counts[1:], errors[1:], "o-", label="Forward-scattering standard error")

axis.loglog(counts[1:], errors[-1] * np.sqrt(counts[-1] / np.array(counts[1:])), "--", label="N⁻¹ᐟ² guide")

axis.set(
    xlabel="Independent realizations N", ylabel="Standard error (m⁻¹ sr⁻¹)", title="Sampling uncertainty at θ = 0°"
)

axis.legend()

axis.grid(alpha=0.25, which="both")

plt.show()

Inspect one ensemble realization in 3D

This is the first realization (seed 42) on the calculation grid, not an ensemble average or an infinite-medium material boundary. Drag to rotate and scroll to zoom in the embedded browser view. Regions with higher refractive index are more opaque; opacity is not absorption.

preview_volume = medium.to_volume(
    grid=grid,
    seed=42,
)

medium_figure = preview_volume.plot_3d(
    mode="volume",
    field="refractive_index",
    opacity_scale="increasing",
)

if "--no-browser" not in sys.argv:
    medium_figure.show(renderer="browser")
