Mode fields

Imports

from PyFiberModes import HE11
from PyFiberModes.fiber import load_fiber
from PyFiberModes.field import Field

Loading the double clad fiber [DCF]

Here we load a fiber from MPSTools library and define the wavelength

fiber = load_fiber(fiber_name='SMF28', wavelength=1310e-9)

Preparing the figure

field = Field(
    fiber=fiber,
    mode=HE11,
    limit=10e-6,
    n_point=50
)

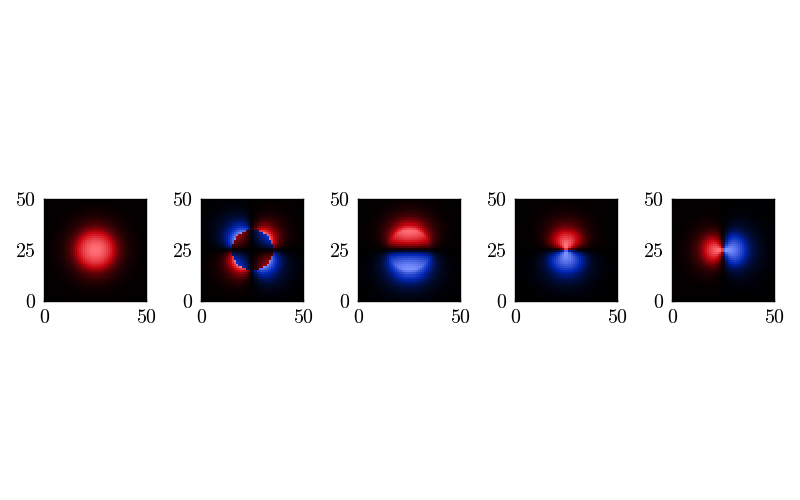

figure = field.plot(plot_type=['Ex', 'Ey', 'Ez', 'Er', 'Ephi'])

figure.show()

# -
