Finite-sample size convergence

Compare numerical first-order random-volume ensembles as sample size grows at fixed voxel spacing. The coefficients are cross sections divided by sample volume. Sample size, voxel resolution and realization count describe separate sources of uncertainty and must be checked independently.

from bornsim.medium.random_medium import GaussianMedium

import sys

import matplotlib.pyplot as plt

from bornsim import EnsembleSampling, AngularSampling, Grid, Solver, Source
from bornsim.units import ureg

medium = GaussianMedium(
    refractive_index_std=0.001,
    correlation_length=60 * ureg.nanometer,
    background_refractive_index=1.33,
)

source_configuration_1 = Source(wavelength=633 * ureg.nanometer)

solver = Solver(
    source=source_configuration_1,
    order=1,
)

sampling = AngularSampling(
    start=0 * ureg.degree,
    end=180 * ureg.degree,
    n_points=19,
    polar_samples=32,
    azimuth_samples=8,
)

figure, axis = plt.subplots(layout="constrained")

for cells in (4, 8, 12):
    grid = Grid(
        shape=(cells,) * 3,
        spacing=30 * ureg.nanometer,
    )

    ensemble_sampling_configuration_1 = EnsembleSampling(
        realizations=8,
        seed=42,
    )

    result = solver.ensemble(
        medium=medium,
        grid=grid,
        ensemble_sampling=ensemble_sampling_configuration_1,
        sampling=sampling,
    )

    averaged = result.azimuth_average()

    axis.errorbar(
        result.angles.to("degree").magnitude,
        averaged.differential.to("1 / meter / steradian").magnitude[0],
        yerr=averaged.stderr.to("1 / meter / steradian").magnitude[0],
        label=f"Finite cube: {cells * 30} nm side, 8 realizations",
    )

    print(f"{cells * 30} nm cube: μs = {result.mu_s[0]}, g = {result.g[0]}")

axis.set(
    xlabel="Scattering angle (degrees)",
    ylabel="Differential scattering (m⁻¹ sr⁻¹)",

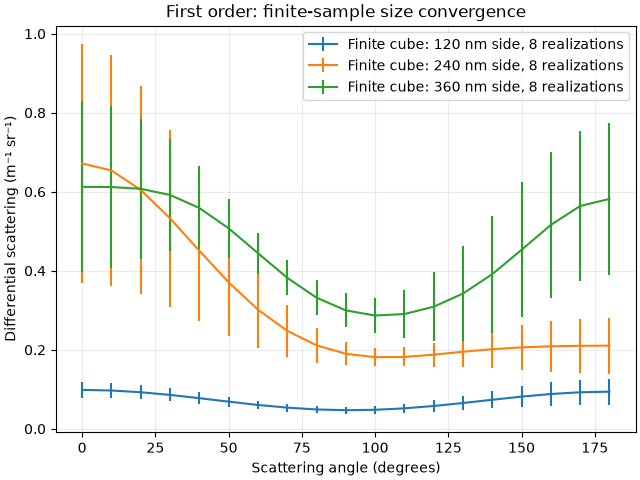

    title="First order: finite-sample size convergence",
)

axis.legend()

axis.grid(alpha=0.25)

plt.show()

120 nm cube: μs = 0.7954126902831687 / meter, g = 0.013367158313236571 dimensionless
240 nm cube: μs = 3.36443097460754 / meter, g = 0.20743249757359933 dimensionless
360 nm cube: μs = 5.027407224500179 / meter, g = 0.0780324357834068 dimensionless

Inspect one ensemble realization in 3D

This is the first realization (seed 42) on the calculation grid, not an ensemble average or an infinite-medium material boundary. Drag to rotate and scroll to zoom in the embedded browser view. Regions with higher refractive index are more opaque; opacity is not absorption. Use the largest of the three finite cubes compared above.

preview_volume = medium.to_volume(
    grid=grid,
    seed=42,
)

medium_figure = preview_volume.plot_3d(
    mode="volume",
    field="refractive_index",
    opacity_scale="increasing",
)

if "--no-browser" not in sys.argv:
    medium_figure.show(renderer="browser")
