Loading and plotting a step-index fiber structure

from FiberFusing.fiber import GenericFiber
from FiberFusing.coordinate_system import CoordinateSystem

fiber = GenericFiber()

fiber.create_and_add_new_structure(
    name='cladding',
    refractive_index=1.4450,
    radius=62.5 * 1e-6
)

fiber.create_and_add_new_structure(
    name='core',
    refractive_index=1.4480,
    radius=4.5 * 1e-6
)

coordinate_system = CoordinateSystem(
    nx=100,
    ny=100,
    x_min=-20e-6,
    x_max=20e-6,
    y_min=-20e-6,
    y_max=20e-6,
)

mesh = fiber.get_raster_mesh(coordinate_system=coordinate_system)

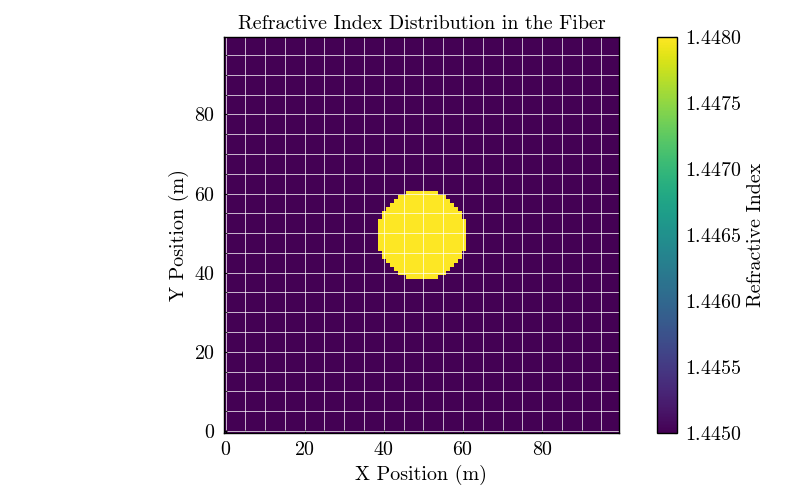

import matplotlib.pyplot as plt
plt.imshow(mesh, origin='lower', cmap='viridis')
plt.colorbar(label='Refractive Index')
plt.title('Refractive Index Distribution in the Fiber')
plt.xlabel('X Position (m)')
plt.ylabel('Y Position (m)')
plt.show()
