Loading and plotting a single fiber structure#
from FiberFusing.fiber import FiberLoader
fiber_loader = FiberLoader()

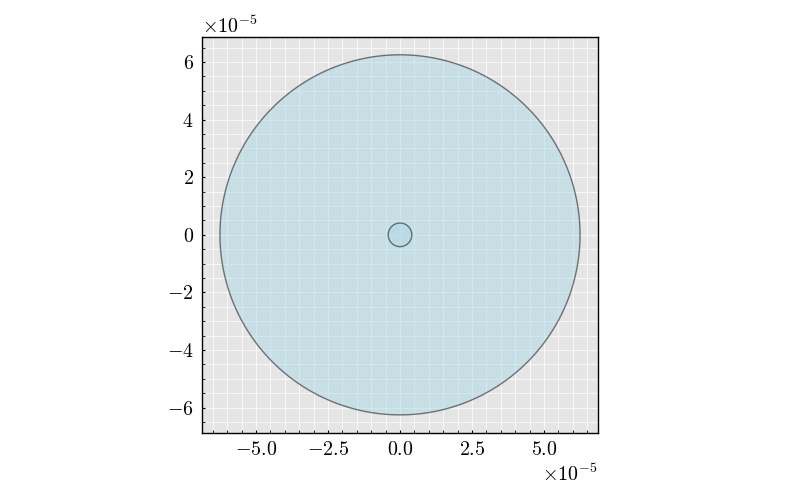

fiber = fiber_loader.load_fiber('SMF28', clad_refractive_index=1.444, position=(0, 0))
fiber.plot()
<Figure size 800x500 with 1 Axes>

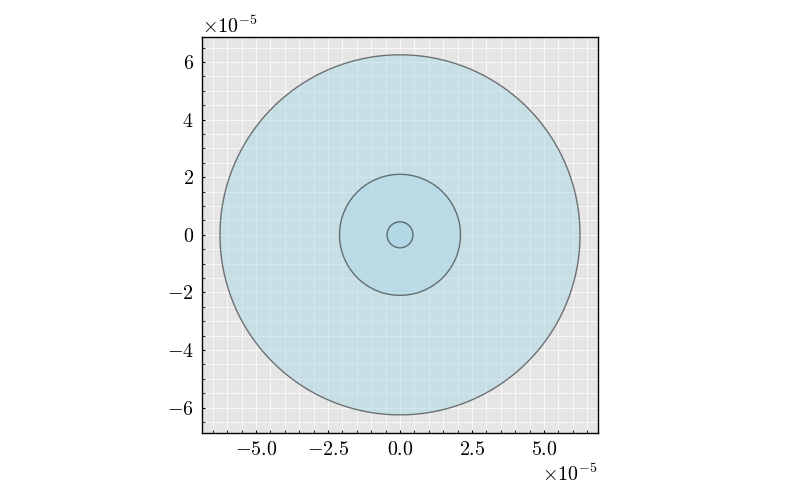

fiber = fiber_loader.load_fiber('DCF1300S_42', clad_refractive_index=1.444, position=(0, 0))
fiber.plot()
<Figure size 800x500 with 1 Axes>
Total running time of the script: (0 minutes 0.371 seconds)
