Generating Whittle-Matérn field

In this example, we generate a Whittle-Matérn field using a finite difference Laplacian operator. We will explore different correlation lengths and observe their effect on the resulting fields.

Importing required packages

Here we import the necessary libraries for numerical computations, rendering, and finite difference operations.

import numpy as np
from scipy import linalg
import matplotlib.pyplot as plt
from PyFinitDiff.finite_difference_2D import FiniteDifference, Boundaries
from PyFinitDiff import BoundaryValue

Setting up the finite difference Laplacian

We define a grid and create a finite difference instance that provides us with a Laplacian operator.

n_x = n_y = 20

sparse_instance = FiniteDifference(
    n_x=n_x,
    n_y=n_y,
    dx=1000 / n_x,
    dy=1000 / n_y,
    derivative=2,
    accuracy=2,
    boundaries=Boundaries(top=BoundaryValue.SYMMETRIC)
)

laplacian = sparse_instance.triplet.to_dense()

Defining the function to generate the Whittle-Matérn field

The following function generates a field by solving a linear system involving the Laplacian and random noise.

def get_field(D: float, lc: float, Nc: float, shape: list):
    n_x, n_y = shape
    eta = np.random.rand(n_x * n_y)

    left_hand_side = (-laplacian + lc**2) ** (3 / 2)
    right_hand_side = eta

    field = linalg.solve(left_hand_side, right_hand_side)

    return Nc * field

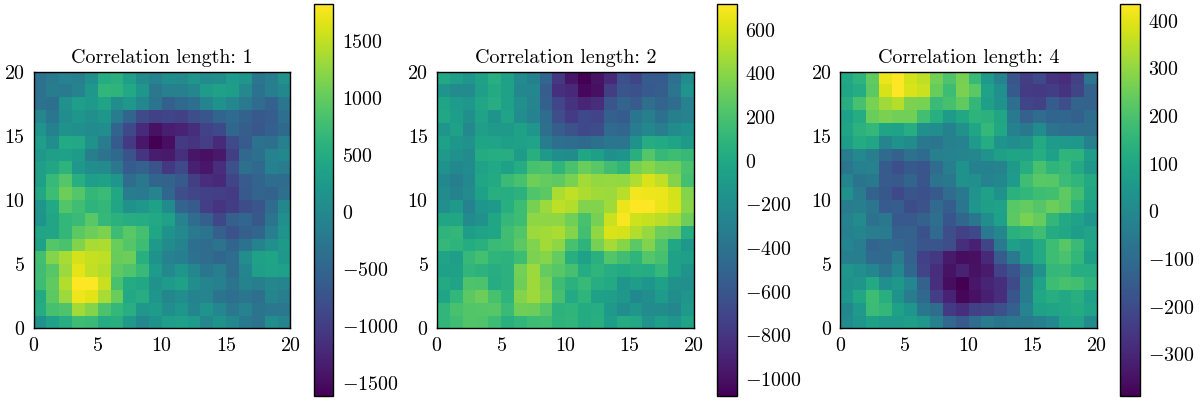

Visualizing the fields for different correlation lengths

We generate and visualize fields with varying correlation lengths to see their impact on the structure of the field.

fig, axes = plt.subplots(1, 3, figsize=(12, 4), constrained_layout=True)
axes = axes.flatten()

for ax, correlation_length in zip(axes, [1, 2, 4]):
    field = get_field(D=3, lc=correlation_length, Nc=1, shape=[n_x, n_y]).reshape([n_x, n_y])
    mesh = ax.pcolormesh(field, shading='auto', cmap='viridis')
    ax.set_title(f'Correlation length: {correlation_length}')
    ax.set_aspect('equal')
    plt.colorbar(mesh, ax=ax)

plt.show()
