Example: triplets 0

In this example, we generate a finite difference instance and visualize the resulting triplets. The boundary conditions, derivative, and accuracy settings are specified for demonstration purposes.

Finite-difference parameters

boundaries: {left: 0, right: 0, top: 0, bottom: 0}
derivative: 2
accuracy: 4

Importing required packages

Here we import the necessary libraries for numerical computations and finite difference operations.

from PyFinitDiff.finite_difference_2D import FiniteDifference, Boundaries
import matplotlib.pyplot as plt

Setting up the finite difference instance and boundaries

We define the grid size and set up the finite difference instance with specified boundary conditions.

sparse_instance = FiniteDifference(
    n_x=20,
    n_y=20,
    dx=1,
    dy=1,
    derivative=2,
    accuracy=2,
    boundaries=Boundaries()
)

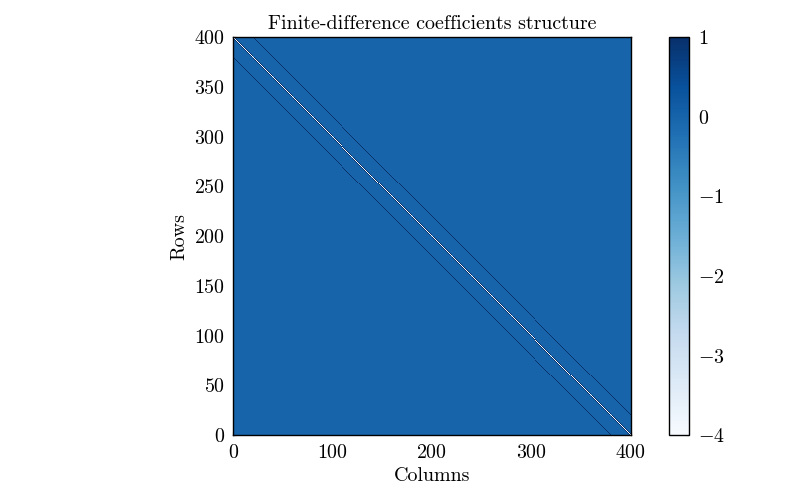

Visualizing the triplets with matplotlib

We plot the triplets using matplotlib to visualize the finite difference operator.

sparse_instance.triplet.plot()

plt.show()

# -
