Equilibrating an RSA configuration with Metropolis moves

Random sequential addition (RSA) creates a valid hard-sphere packing, but it is irreversible and does not sample the equilibrium hard-sphere ensemble. This example uses that RSA configuration only as an initial state for single-particle Metropolis moves. The Metropolis sampler keeps every radius, class label, and the particle count fixed; it only changes sphere centres.

For a production equilibrium calculation, check that observables have reached stationarity and estimate their uncertainty from independent samples. The acceptance rate printed below helps tune the proposal displacement.

from PackLab import monte_carlo, samplers
from PackLab.units import ureg
import matplotlib.pyplot as plt

Create a convenient non-overlapping initial state with RSA

domain = monte_carlo.PackingDomain(
    5 * ureg.micrometer,
    5 * ureg.micrometer,
    5 * ureg.micrometer,
    use_periodic_boundaries=True,
)
radius_sampler = samplers.ConstantRadiusSampler(150 * ureg.nanometer, bins=1)

rsa_options = monte_carlo.RSAOptions()
rsa_options.random_seed = 12
rsa_options.maximum_attempts = 50_000
rsa_options.target_packing_fraction = 0.08
initial_result = monte_carlo.RSASimulator(domain, radius_sampler, rsa_options).run()

Equilibrate with fixed-volume Metropolis sampling

metropolis_options = monte_carlo.MetropolisOptions()
metropolis_options.random_seed = 34
metropolis_options.number_of_sweeps = 500
metropolis_options.maximum_displacement = 50 * ureg.nanometer

simulator = monte_carlo.MetropolisSimulator(
    domain,
    initial_result.sphere_configuration,
    metropolis_options,
)
equilibrated_result = simulator.run()

statistics = simulator.statistics
print(f"Metropolis acceptance rate: {statistics.acceptance_rate:.3f}")
print(f"Completed sweeps: {statistics.completed_sweeps}")
print(f"Packing fraction: {equilibrated_result.statistics.packing_fraction_geometry:.3f}")

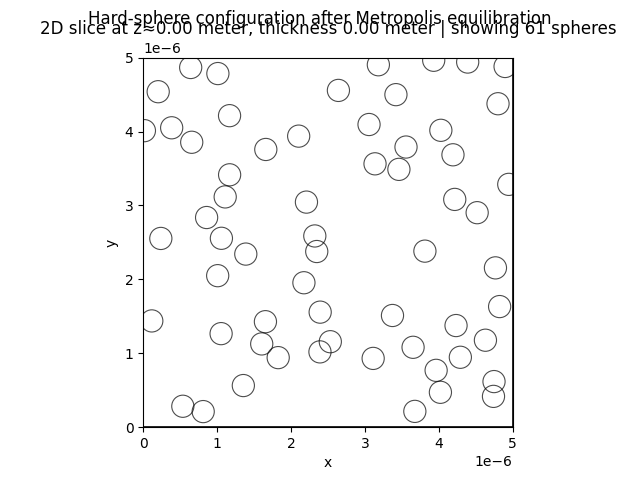

figure = equilibrated_result.plot_slice_2d(show=False)
_ = figure.suptitle("Hard-sphere configuration after Metropolis equilibration")
plt.show()

Metropolis acceptance rate: 0.910
Completed sweeps: 500
Packing fraction: 0.080
