Single Module#

The single package focuses on scattering from a single particle. It exposes simple classes for defining a source, a scatterer and a detector so that the interaction can be studied in detail.

Key components#

  • Sources – plane waves and Gaussian beams.

  • Scatterers – spheres, cylinders and core–shell particles.

  • Detectors – photodiodes as well as coherent and incoherent detectors.

Example#

This example computes the power coupled into a photodiode from a tiny sphere.

from PyMieSim.single.scatterer import Sphere
from PyMieSim.single.source import Gaussian
from PyMieSim.single.detector import Photodiode
from PyMieSim.units import nanometer, degree, watt, AU, RIU

source = Gaussian(
    wavelength=450 * nanometer,
    polarization=0 * degree,
    optical_power=1 * watt,
    NA=0.3 * AU,
)

scatterer = Sphere(
    diameter=6 * nanometer,
    source=source,
    medium_property=1.0 * RIU,
    property=1.4 * RIU,
)

detector = Photodiode(
    NA=0.1 * AU,
    phi_offset=0 * degree,
    gamma_offset=0 * degree,
    sampling=200 * AU,
    polarization_filter=None,
)

coupling = detector.coupling(scatterer)
print(coupling)

Detectors#

Examples illustrating different detector models.

Hermite-Gauss 01 Mode Detector

Hermite-Gauss 01 Mode Detector

Hermite-Gauss 31 Mode Detector

Hermite-Gauss 31 Mode Detector

Laguerre-Gauss 2-3 Mode Detector

Laguerre-Gauss 2-3 Mode Detector

LP01 Mode Detector

LP01 Mode Detector

LP02 Mode Detector

LP02 Mode Detector

LP11 Mode Detector

LP11 Mode Detector

Integrating sphere

Integrating sphere

Photodiode Detector

Photodiode Detector

Scatterers#

Examples exploring available scatterer geometries.

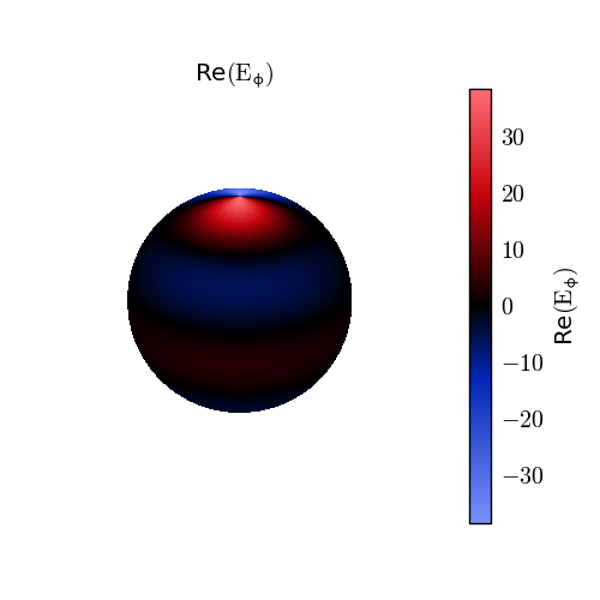

Far-Fields Computation and Visualization

Far-Fields Computation and Visualization

Scatterer Footprint Calculation and Visualization

Scatterer Footprint Calculation and Visualization

Print properties

Print properties

S1 S2 Function Computation

S1 S2 Function Computation

Source Plottings

Source Plottings

SPF Computation

SPF Computation

Stokes Parameters Computation

Stokes Parameters Computation
