Samples Properties

from TypedUnit import ureg

from PyMieSim.single.scatterer import Sphere
from PyMieSim.single.source import Gaussian

source = Gaussian(
    wavelength=1000 * ureg.nanometer,
    polarization=0 * ureg.degree,
    optical_power=1 * ureg.watt,
    NA=0.3 * ureg.AU,
)

scatterer = Sphere(
    diameter=800 * ureg.nanometer,
    source=source,
    property=1.4 * ureg.RIU,
    medium_property=1.0 * ureg.RIU,
)

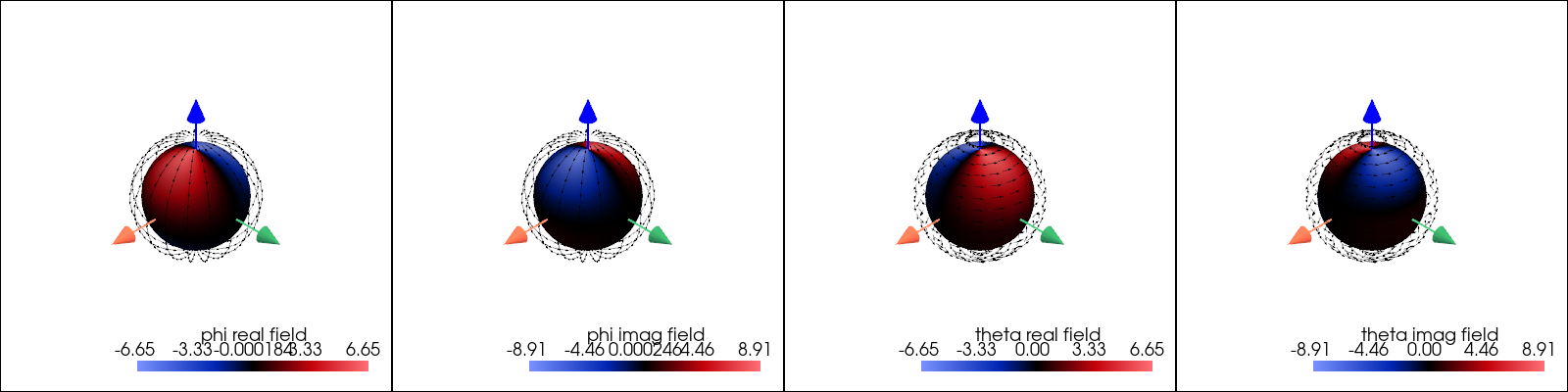

Plotting the farfield pattern

farfield = scatterer.get_farfield(sampling=300)
farfield.plot()

Printing the scatterer properties

scatterer.print_properties()

Property        Value
--------------  ---------------------------------
size_parameter  2.513274122871834 dimensionless
radius          400.0 nanometer
volume          2.6808257310632903e-19 meter ** 3
cross_section   502654.8245743669 nanometer ** 2
g               0.6960064419371798 dimensionless
Qsca            1.7376473038362097 dimensionless
Qext            1.7376473038362097 dimensionless
Qabs            0.0 dimensionless
Qback           0.35502029214192654 dimensionless
Qratio          0.2043109043809679 dimensionless
Qpr             0.5282335865514358 dimensionless
Csca            873436.8006819116 nanometer ** 2
Cext            873436.8006819116 nanometer ** 2
Cabs            0.0 meter ** 2
Cback           178452.66266694057 nanometer ** 2
Cratio          102697.86180024568 nanometer ** 2
Cpr             265519.16078230063 nanometer ** 2
