InfiniteCylinder: Qsca vs wavelength std

Result dimensions and shape: ('source:wavelength', 'scatterer:diameter') (300, 10)
Measure units: {'Qsca': <Unit('dimensionless')>}

import numpy as np
from PyMieSim import (
    Measure,
    ureg,
    InfiniteCylinderSet,
    GaussianSet,
    PolarizationSet,
    Experiment,
)


polarization_set = PolarizationSet(
    angles=[0.0] * ureg.degree,
)

source = GaussianSet(
    wavelength=np.linspace(200, 1800, 300) * ureg.nanometer,
    polarization=polarization_set,
    optical_power=[1] * ureg.watt,
    numerical_aperture=[0.2],
)
scatterer = InfiniteCylinderSet(
    diameter=np.linspace(400, 1400, 10) * ureg.nanometer,
    material=[1.4],
    medium=[1.0],
)

experiment = Experiment(scatterer_set=scatterer, source_set=source)

result = experiment.get(Measure.QSCA)

print("Result dimensions and shape:", result.dims, result.shape)
print("Measure units:", result.attrs["units"])

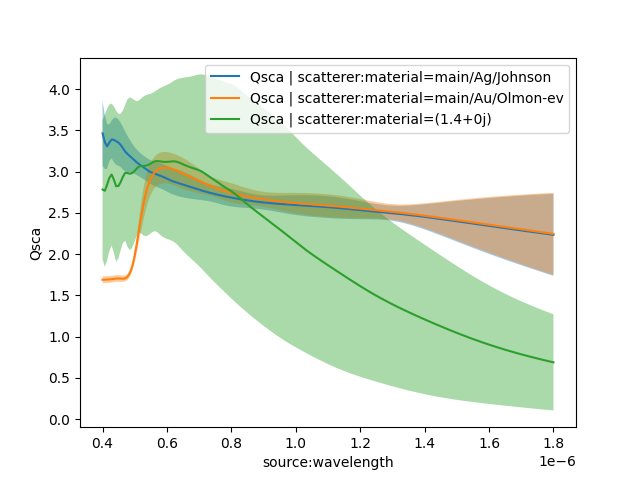

result.plot(x="source:wavelength", std="scatterer:diameter")
