InfiniteCylinder: Coupling vs Wavelength

This example demonstrates how to compute and visualize the coupling efficiency as a function of wavelength for cylindrical scatterers using PyMieSim.

Result dimensions and shape: ('source:wavelength', 'scatterer:diameter', 'detector:NA') (300, 5, 2)
Measure units: {'coupling': <Unit('watt')>}

import PyOptik
from PyMieSim import from_pyoptik
import numpy as np
from PyMieSim import (
    Measure,
    ureg,
    CoherentModeSet,
    InfiniteCylinderSet,
    GaussianSet,
    PolarizationSet,
    Experiment,
)



polarization_set = PolarizationSet(
    angles=[30.0] * ureg.degree,
)

source = GaussianSet(
    wavelength=np.linspace(950, 1050, 300) * ureg.nanometer,
    polarization=polarization_set,
    optical_power=[1e-3] * ureg.watt,
    numerical_aperture=[0.2],
)

scatterer = InfiniteCylinderSet(
    diameter=np.linspace(300, 500, 5) * ureg.nanometer,
    material=[from_pyoptik(PyOptik.load_material(name="specs/SCHOTT-optical/P-BK7"))],
    medium=[1],
)

detector = CoherentModeSet(
    mode_number=["LP11"],
    numerical_aperture=[0.05, 0.01],
    phi_offset=[-180] * ureg.degree,
    gamma_offset=[0] * ureg.degree,
    sampling=[300],
    rotation=[0] * ureg.degree,
)

experiment = Experiment(scatterer_set=scatterer, source_set=source, detector_set=detector)

result = experiment.get(Measure.COUPLING)

print("Result dimensions and shape:", result.dims, result.shape)
print("Measure units:", result.attrs["units"])

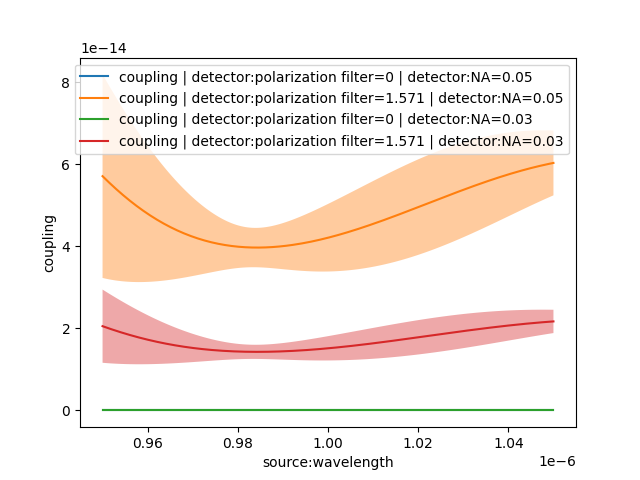

result.plot(x="source:wavelength", std="scatterer:diameter")
