Sphere: Goniometer

Result dimensions and shape: ('source:wavelength', 'detector:NA', 'detector:phi_offset') (2, 3, 200)
Measure units: {'coupling': <Unit('watt')>}

import PyOptik
from PyMieSim import from_pyoptik
from PyMieSim import (
    Measure,
    ureg,
    PhotodiodeSet,
    SphereSet,
    GaussianSet,
    PolarizationSet,
    Experiment,
)
import numpy



polarization_set = PolarizationSet(
    angles=[90.0] * ureg.degree,
)

source = GaussianSet(
    wavelength=[600, 1200] * ureg.nanometer,
    polarization=polarization_set,
    optical_power=[1e-3] * ureg.watt,
    numerical_aperture=[0.2],
)
scatterer = SphereSet(
    diameter=[1000] * ureg.nanometer,
    material=[from_pyoptik(PyOptik.load_material(name="specs/SCHOTT-optical/P-BK7"))],
    medium=[1],
)

detector = PhotodiodeSet(
    numerical_aperture=[0.1, 0.15, 0.2],
    phi_offset=numpy.linspace(-180, 180, 200) * ureg.degree,
    cache_numerical_aperture=[0.05],
    gamma_offset=0 * ureg.degree,
    sampling=[400]
)

experiment = Experiment(scatterer_set=scatterer, source_set=source, detector_set=detector)

result = experiment.get(Measure.COUPLING)

print("Result dimensions and shape:", result.dims, result.shape)
print("Measure units:", result.attrs["units"])

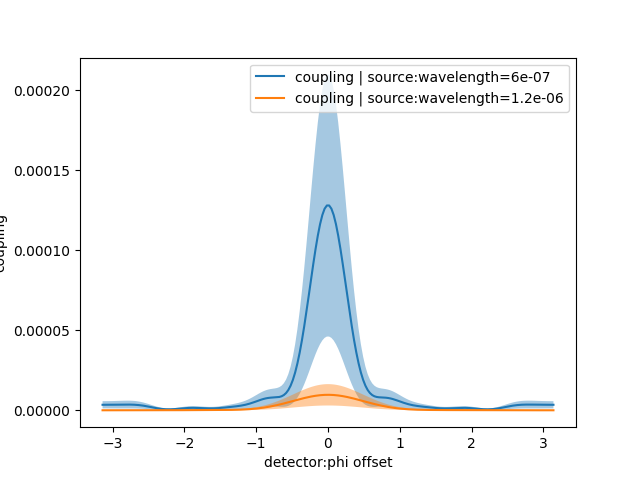

result.plot(x="detector:phi_offset", y='coupling', std='detector:NA')
